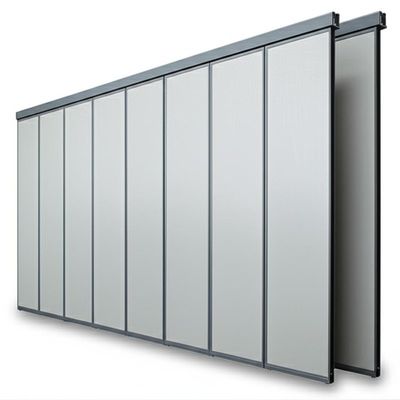

No Floor Track Acoustic Partition Wall with Q235 Steel Frame and Up to 18M Height for Conference Halls

Nom De Marque:	AE
Numéro De Modèle:	AE100
Nombre De Pièces:	10 mètres carrés
Prix:	USD 80-108 Per Square Meter
Conditions De Paiement:	L / C, D / A, D / P, T / T, Western Union, Moneygram
Capacité D'approvisionnement:	1000 mètres carrés par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Guangdong, Chine

Certification:

ISO9001 SGS

Nom de produit:

une cloison acoustique

Application:

Partitions de salle de conférence

Option de finition:

Matériaux fournis par le client

Hauteur:

Jusqu'à 18M

Conception:

OEM et ODM

Isolation:

Max 56db

Détails d'emballage:

Couche de mousse et carton dur avec boîtier en contreplaqué ou palette en acier

Mettre en évidence:

No Floor Track Acoustic Partition Wall

Q235 Steel Frame Partition Wall

18M Height Soundproof Partition Wall

Description du produit

Sound Proof Insulation Acoustic Partition Wall Operable For Conference Hall

Our high-performance acoustic partition walls provide superior sound insulation for conference halls and professional spaces, combining functionality with aesthetic flexibility.

Key Features

No Floor Track: Ceiling-mounted design eliminates tripping hazards and debris accumulation with optional integrated acoustic bottom seal.
Unlimited Customization: Choose from vinyl, fabric, carpet, veneer, high-pressure laminates, frescoes, or custom surfaces with MDF finish options.
Durable Construction: Robust aluminum frame available in heights from 2-15 meters with four thickness options for maximum rigidity.

Roller Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface design for smooth operation

Panel Features

Thickness options: 68mm, 89mm, 105mm
Multiple acoustical and decorative finishes available
6061-T6 profile with Q235 steel frame for enhanced durability
Top & bottom jack lifting mechanism with 800N power
Magnetic seal with 40N/m attraction in concave & convex profile

Specifications

Series	Element Thickness (mm)	Element Width (mm)	Clear Height (mm)	Construction
AE65	68	600-1,250	2,000-4,500	Aluminium-steel
AE85	89	600-1,250	2,000-5,500	Aluminium-steel
AE100	105	600-1,250	2,000-18,000	Aluminium-steel

Technology: Weighted sound reduction value (Rw) 52/56 dB (GB/T19889.3-2005)
Connection System: Convex-concave profile with magnetic strip (40 N/m attraction)
* Larger widths available upon request. Final dimensions subject to Design Department approval.
